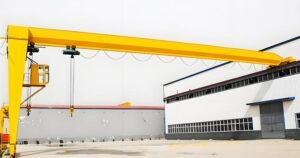

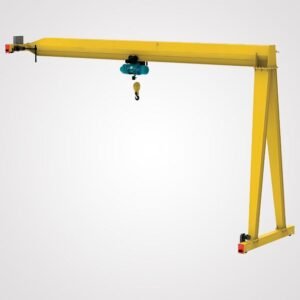

BMH Semi-Gantry Crane
Our BMH Semi-Gantry Crane is a factory-direct lifting solution designed for material handling, industrial cranes, semi-gantry lifting, and large-scale heavy-duty projects. Built with high-strength steel and strict quality control, it ensures stable operation, high load capacity, and long-term durability in demanding work environments. We provide complete mechanical drawings and technical documentation to support installation, commissioning, and operational planning. This crane is highly adaptable to diverse on-site conditions, effectively solving challenges such as heavy load movement, precise positioning, limited workspace coordination, and workflow efficiency. Backed by guaranteed after-sales service, professional technical support, and dedicated personnel tracking production and orders from manufacturing to delivery, we ensure reliable procurement, consistent quality, and smooth project execution for every customer.
- Source factory design and customization
- High-quality multi-layer monitoring
- Worry-free after-sales service and reliable cooperation
- Expert remote online guidance
- A team of engineers with decades of experience
- Professional mechanical drawing services are available
BMH Semi-Gantry Crane
Factory-Built Semi Gantry Solution for Workshops,Warehouses,and Industrial Operations
BMH Semi-Gantry Crane Flexible and Cost-Effective Lifting Solution.
With years of experience in crane manufacturing and project installation,we understand the real needs of industrial customers—efficient lifting,
reliable operation,and cost-effective investment.The BMH Semi-Gantry Crane is designed exactly for those who need strong lifting capacity in limited spaces,
combining flexibility,stability,and easy installation in one compact structure.This crane type is especially suitable for workshops,warehouses,
and production lines where one side of the crane runs on a ground rail and the other side travels on a runway beam or wall bracket.
It maximizes the use of working space and minimizes construction cost.
Product Overview
The BMH Semi Gantry Crane is designed for facilities that require one side running on a ground rail and the other on an elevated runway,
offering efficient material handling without full gantry construction.Manufactured directly at our factory,it combines a durable steel structure,
reliable hoist system,and smooth trolley travel,ensuring stable and cost-effective lifting.
Ideal for industrial semi gantry applications,workshop gantry systems,indoor/outdoor material handling,and single-side semi gantry lifting,
the BMH crane is fully customizable for span,lifting height,hoist type,duty class,and operational speed to meet different industrial requirements across Asia,
the Middle East,and Europe.
Product Advantages
Space-Saving Semi-Gantry Design
One leg runs on ground rails while the other side is supported by the elevated runway,minimizing building modification.
Efficient Material Handling
Smooth lifting and trolley movement enhance workflow in industrial semi gantry crane,warehouse gantry system,and port loading applications.
Durable Factory-Built Structure
Made with high-strength steel and corrosion-resistant coating suitable for humid Asian climates,Middle East high temperatures,and indoor European facilities.
Customizable for Various Applications
Adjust span,lifting height,hoist type,trolley speed,and duty class for custom gantry cranes,indoor semi gantry cranes,and lightweight gantry lifting systems.
Low Maintenance and Long Service Life
Easy-access components,reinforced wheels,and a robust mechanical structure ensure reliable operation for material handling cranes in all environments.
Technical Parameters
| Model | Capacity(t) | Span(m) | Lifting Height(m) | Lifting Speed(m/min) | Travel Speed(m/min) | Crane Speed(m/min) | Duty Class | Power Supply |
| BMH Semi Gantry | 3–10 | 8–20 | 6–12 | 5–8 | 20–35 | 20–45 | A3–A5 | 380–460V/50–60Hz |
| BMH Semi Gantry | 10–20 | 12–25 | 6–15 | 5–8 | 20–35 | 20–45 | A5–A6 | 380–460V/50–60Hz |
| BMH Heavy Type | 20–32 | 18–28 | 8–15 | 3–5 | 15–30 | 15–40 | A5–A6 | 380–460V/50–60Hz |
Application Scenarios
Workshops in Asia,Middle East,and Europe
Warehouse material handling
Machinery assembly and fabrication lines
Port loading/unloading and logistics hubs
Steel structure workshops
Indoor and semi-outdoor industrial operations
What Problems Can This Crane Solve?
Efficient lifting in workshops and ports without full gantry construction
Limited building height or space constraints in industrial sites
Long-span lifting with stable trolley travel and minimal sway
Reduced manpower for continuous material handling
Compatible with existing cranes or warehouse systems
Why Choose Us?
Q1:How does factory production improve reliability?
A1:All main components are produced in-house for consistent quality,stable structure,and long service life.
Q2:Can the BMH Semi Gantry Crane be customized?
A2:Yes,span,lifting height,hoist type,duty class,and control system are fully customizable for all regions.
Q3:What makes it suitable for workshops and ports?
A3:Its semi-gantry design minimizes building requirements while allowing safe and flexible operations.
Q4:Is installation and operation support available?
A4:Yes,we provide remote guidance,video tutorials,and engineering consultation to ensure proper setup.
After-Sales Service
Remote technical guidance for installation,commissioning,and setup
Video-assisted troubleshooting and operation support
Factory video tours for understanding maintenance procedures
Continuous technical assistance for parts replacement and performance optimization
Engineering support for all industrial environments
FAQ–BMH Semi Gantry Crane
Q1:What working conditions is this crane suitable for?
Suitable for workshops,warehouses,ports,and industrial sites across Asia,Middle East,and Europe.
Q2:Can it handle indoor and semi-outdoor operations?
Yes,it is designed to resist high temperatures,humidity,and dust conditions.
Q3:What information is needed for a quotation?
Capacity,span,lifting height,duty class,hoist type,and layout drawings.
Q4:Can it operate alongside other cranes?
Yes,it is compatible with existing industrial or port gantry systems without interference.
Contact Us
If you are planning to improve your material handling system,our engineers are ready to design the most suitable semi-gantry crane solution for you.Contact us today for a detailed quotation,technical drawing,or professional consultation.
