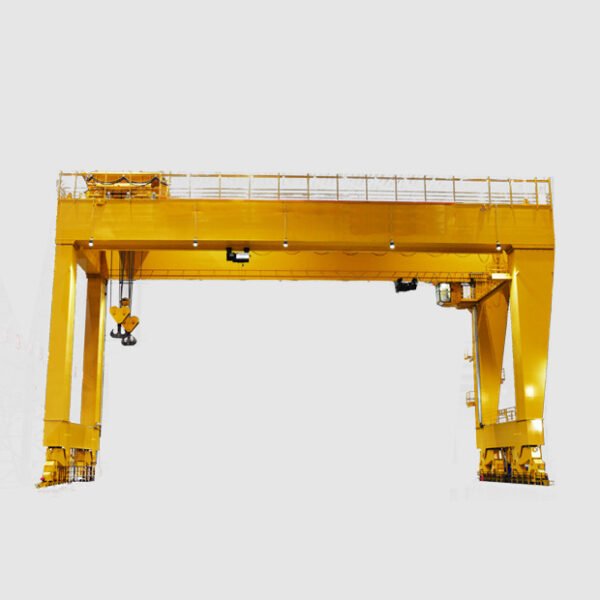

U-Type Double Girder Gantry Crane
Our U-Type Double Girder Gantry Crane is a factory-direct heavy lifting solution designed for efficient material handling, overhead lifting, industrial lifting, and large-scale engineering projects. Built with high-quality steel and precision manufacturing, it ensures long-term reliability, stable operation, and high load capacity. Detailed mechanical drawings and technical documentation are provided to support seamless installation, operation, and project planning. The crane is adaptable to diverse construction and industrial environments, effectively addressing challenges such as heavy load movement, precise positioning, limited workspace coordination, and operational safety. With guaranteed after-sales service, professional technical support, and dedicated personnel tracking production and orders from manufacturing to delivery, we ensure smooth procurement, dependable performance, and consistent project success for global customers.
- Source factory design and customization
- High-quality multi-layer monitoring
- Worry-free after-sales service and reliable cooperation
- Expert remote online guidance
- A team of engineers with decades of experience
- Professional mechanical drawing services are available
U-Type Double Girder Gantry Crane
Heavy-Duty U-Shaped Double Girder Gantry Crane from a Professional Manufacturing Factory
Reliable U-Type Double Girder Gantry Crane for Heavy-Duty Lifting
Our factory specializes in manufacturing U-type double girder gantry cranes,
designed for high-capacity,precise,and reliable industrial lifting.
Engineered with reinforced U-shaped girders and dual-girder support,
these cranes ensure stability,durability,and smooth operation in container yards,
warehouses,steel factories,and logistics centers.
Factory-direct supply guarantees customized solutions with professional guidance from design to commissioning,
offering efficient material handling with safety and precision.
Product Introduction–U-Type Double Girder Gantry Crane
The U-type double girder gantry crane is ideal for heavy industrial lifting,
container handling,and high-frequency material transport.
Its U-shaped design provides rigidity and superior load distribution,
while the dual-girder system ensures stable hoisting and precise trolley travel.
Adjustable spans and lifting heights allow seamless adaptation to various industrial layouts and outdoor yard conditions,
making it perfect for steel yards,logistics terminals,heavy machinery handling,and large-scale warehouses.
Key Advantages
High Load Capacity&Rigidity:Reinforced U-shaped girders reduce deflection and sway,ensuring precise lifting of heavy loads.
Smooth&Accurate Operation:Optimized trolley and hoist system improves load placement accuracy.
Durable Outdoor Construction:Weather-resistant coatings and high-strength steel guarantee long-term performance.
Customizable Configurations:Adjustable span,lifting height,and trolley options to meet specific site requirements.
Enhanced Safety Features:Anti-sway control,overload protection,and optional real-time monitoring systems.
Operational Efficiency:Dual-girder design reduces cycle times and improves handling efficiency for high-frequency lifting.
Technical Parameters
| Model | Capacity (t) | Span(m) | Lifting Height (m) | Lifting Speed (m/min) | Trolley Speed (m/min) | Crane Speed (m/min) | Working Class | Power Supply |
| UMG32 | 32 | 18–35 | 10–20 | 5–8 | 20–40 | 20–50 | A5–A6 | 380V 50Hz 3Ph |
| UMG50 | 50 | 18–40 | 10–20 | 5–8 | 20–40 | 20–50 | A6 | 380V 50Hz 3Ph |
| UMG75 | 75 | 20–45 | 10–22 | 3–5 | 15–30 | 20–50 | A6–A7 | 380V 50Hz 3Ph |
| UMG100 | 100 | 20–50 | 12–25 | 3–5 | 15–30 | 20–45 | A7 | 380V 50Hz 3Ph |
| Customized | Up to 200 | Customized | Customized | Customized | Customized | Customized | A7–A8 | Optional |
Product Features
Reinforced U-shaped double girders for high rigidity
High-precision hoist with anti-sway control
Smooth trolley travel with minimal vibration
Adjustable span and lifting height
Remote or cabin-controlled operation
Low-maintenance mechanical and electrical systems
Why Choose Our Company
Choosing our factory for your U-type double girder gantry crane ensures factory-direct pricing,fully customizable solutions,and professional technical support.With decades of experience and rigorous quality control,we deliver durable,high-performance cranes suited for container handling,industrial material transport,and warehouse operations.We provide installation guidance,operator training,and ongoing maintenance support,ensuring your crane operates efficiently and safely.By integrating reinforced U-girders,high-capacity lifting,and smooth trolley travel,our cranes maximize productivity and reduce operational downtime.
Application Scenarios
Industrial Yards&Factories:Efficient handling of steel plates,heavy machinery,and precast components.
Container Terminals&Logistics Centers:Safe and fast movement of containers.
Warehouses&Storage Facilities:Smooth lifting of bulk materials with precise positioning.
Outdoor Industrial Sites:Reliable operation in open yards under wind and weather conditions.
After-Sales Service
We offer comprehensive after-sales support to ensure your U-type double girder gantry crane operates safely and efficiently:
Installation&Commissioning Support:Remote guidance for accurate setup.
Spare Parts Supply:Fast delivery of genuine components to minimize downtime.
Preventive Maintenance&Inspection:Checklists and guidance to maintain optimal crane performance.
Operator Training:Practical programs for safe operation,optimal handling,and maintenance best practices.
Warranty&Technical Support:Dedicated team for troubleshooting,guidance,and emergency response.
FAQ–U-Type Double Girder Gantry Crane
1.How does the U-shaped design improve lifting stability for heavy industrial loads?
The reinforced U-shaped girder and dual-girder structure reduce deflection and sway,ensuring precise placement even for steel plates,containers,or precast components.
2.Can the crane be customized for specific spans,lifting heights,or outdoor environments?
Yes.Adjustable spans,trolley configurations,and lifting heights are tailored to meet site-specific industrial layouts and environmental conditions.
3.How does this crane increase operational efficiency in high-frequency material handling?
Dual girders,optimized trolley travel,and smooth hoisting reduce cycle times and ensure precise,safe,and reliable heavy-duty lifting.
4.What technical support and maintenance services are provided?
We provide online installation guidance,spare parts supply,preventive maintenance programs,and operator training to ensure long-term efficient operation.
Request a Quote
Looking for a reliable U-type double girder gantry crane manufacturer?
Contact our factory today for a free quotation and technical consultation.
We provide customized crane solutions that improve safety,efficiency,and productivity—all backed by professional factory support.
